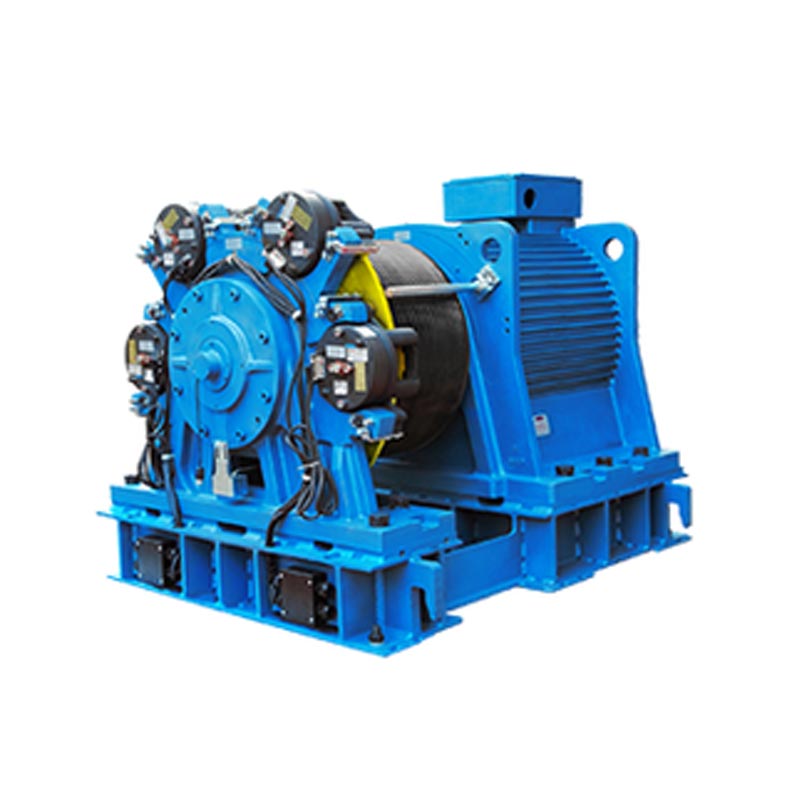

WH SERIES-DOUBLE WRAP (ROTOR DALAMAN)
| Model | Kapasiti kg |
Kelajuan Lif m/s |
Output Dinilai KW |
Dinilai Semasa A |
Kelajuan Dinilai rpm |
Kekerapan Hz |
Diameter Sheave mm |
Tork Nm |
Tali | Groove Dist. mm |
Sudut Potong | Sudut Alur | Bertali | Beban Aci kg |
Roda Pemegang | Keluaran Remole | Inersia kg m^2 |
Berat badan kg |
| WH-4500-300 | 4500 | 3.0 | 93.4 | 205.0 | 151 | 40.2 | 760 | 5,915 | 9-Φ16 | 20 | β=0° | γ=25° | 2:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-4500-350 | 3.5 | 108.9 | 270.0 | 176 | 46.9 | |||||||||||||
| WH-4500-400 | 4.0 | 124.5 | 270.0 | 201 | 53.6 | |||||||||||||
| WH-4500-500 | 5.0 | 155.6 | 340.0 | 251 | 67.0 | |||||||||||||
| WH-5000-300 | 5000 | 3.0 | 103.8 | 230.0 | 151 | 40.2 | 760 | 6,572 | 9-Φ16 | 20 | β=0° | γ=25° | 2:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-5000-350 | 3.5 | 121.0 | 300.0 | 176 | 46.9 | |||||||||||||
| WH-5000-400 | 4.0 | 138.3 | 300.0 | 201 | 53.6 | |||||||||||||
| WH-5000-500 | 5.0 | 172.9 | 375.0 | 251 | 67.0 | |||||||||||||
| WH-6000-300 | 6000 | 3.0 | 107.9 | 235.0 | 151 | 40.2 | 760 | 6835 | 9-Φ16 | 20 | β=0° | γ=25° | 2:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-6000-350 | 3.5 | 125.9 | 310.0 | 176 | 46.9 | |||||||||||||
| WH-6000-400 | 4.0 | 143.9 | 310.0 | 201 | 53.6 | |||||||||||||
| WH-6000-500 | 5.0 | 179.8 | 390.0 | 251 | 67.0 | |||||||||||||
| WH-1600-1200-S | 1600 | 12.0 | 125.5 | 270.0 | 270 | 71.9 | 850 | 4443 | 9-Φ16 | 20 | β=0° | γ=25° | 1:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-2000-1000-S | 2000 | 10.0 | 130.7 | 258.0 | 225 | 59.9 | 850 | 5553 | 9-Φ16 | 20 | β=0° | γ=25° | 1:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-2000-1200-S | 12.0 | 156.9 | 337.0 | 270 | 71.9 | |||||||||||||
| WH-2500-400-S | 2500 | 4.0 | 65.4 | 180.0 | 101 | 26.8 | 760 | 6,207 | 9-Φ16 | 20 | β=0° | γ=25° | 1:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-2500-500-S | 5.0 | 81.7 | 180.0 | 126 | 33.5 | |||||||||||||
| WH-2500-600-S | 6.0 | 98.0 | 215.0 | 151 | 40.2 | |||||||||||||
| WH-2500-700-S | 7.0 | 114.4 | 285.0 | 176 | 46.9 | |||||||||||||
| WH-2500-800-S | 8.0 | 130.7 | 285.0 | 201 | 53.6 | |||||||||||||
| WH-2500-900-S | 9.0 | 147.1 | 355.0 | 226 | 60.3 | |||||||||||||
| WH-2500-1000-S | 10.0 | 163.4 | 355.0 | 251 | 67.0 | |||||||||||||
| WH-3000-400-S | 3000 | 4.0 | 71.9 | 195.0 | 101 | 26.8 | 760 | 6,827 | 9-Φ16 | 20 | β=0° | γ=25° | 1:1 | 55,000 | N | N | 127.0 | 6,100 |
| WH-3000-500-S | 5.0 | 89.9 | 195.0 | 126 | 33.5 | |||||||||||||
| WH-3000-600-S | 6.0 | 107.8 | 232.0 | 151 | 40.2 | |||||||||||||
| WH-3000-700-S | 7.0 | 125.8 | 308.0 | 176 | 46.9 | |||||||||||||
| WH-3000-800-S | 8.0 | 143.8 | 308.0 | 201 | 53.6 | |||||||||||||
| WH-3000-900-S | 9.0 | 161.8 | 387.0 | 226 | 60.3 | |||||||||||||
| WH-3000-1000-S | 10.0 | 179.7 | 387.0 | 251 | 67.0 |
1. Pelanggan perlu mematuhi julat malaikat mesin tarikan siri ini dengan jurutera kami.
2. Brek DC memerlukan pengubah injak turun dalam kabinet untuk menjamin voltan pegangan ialah DC40V.
3. Roping 2:1, kapasiti 6000kg dan roping 1:1, aplikasi kapasiti 3000kg, nisbah baki ialah 0.45-0.5, keperluan lain sila rujuk jurutera.
MESIN SIRI WH
| Kapasiti | 1600kg-6000kg |
| Bertali | 2:1|1:1 |
| Undercut | U |
| tiang | 32 |
| Kerataan Alas Kaki | <0.5mm |
| Penilaian Perlindungan | IP40 |
| Kelas Penebat | F |
| Kitaran Tugas | S5-40% |
| Voltan Berkadar Motor | AC380V |
| Brek | Cakera |
| Memilih/Memegang Voltan | DC90V/DC40V |
Sumber kuasa pembetulan gelombang penuh untuk brek DC
